Cabling infrastructure
Cabling infrastructure is the organized system of cables, connectors, and other hardware used to transmit voice, data, and video signals throughout a building or campus.

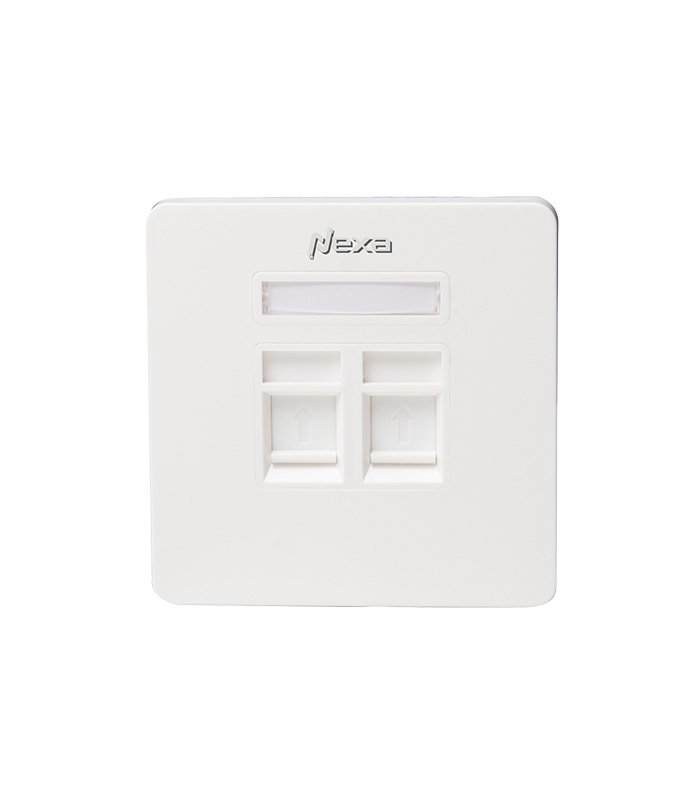

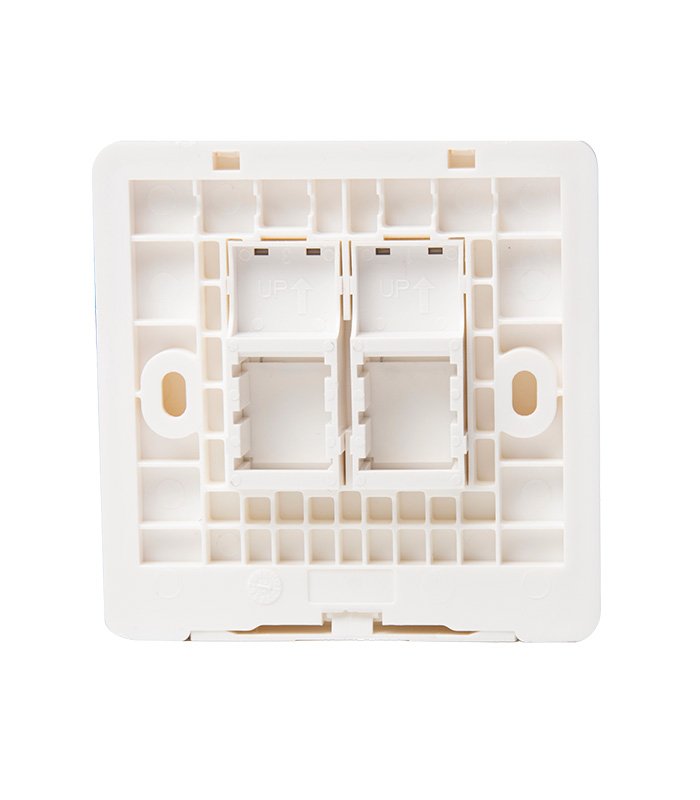

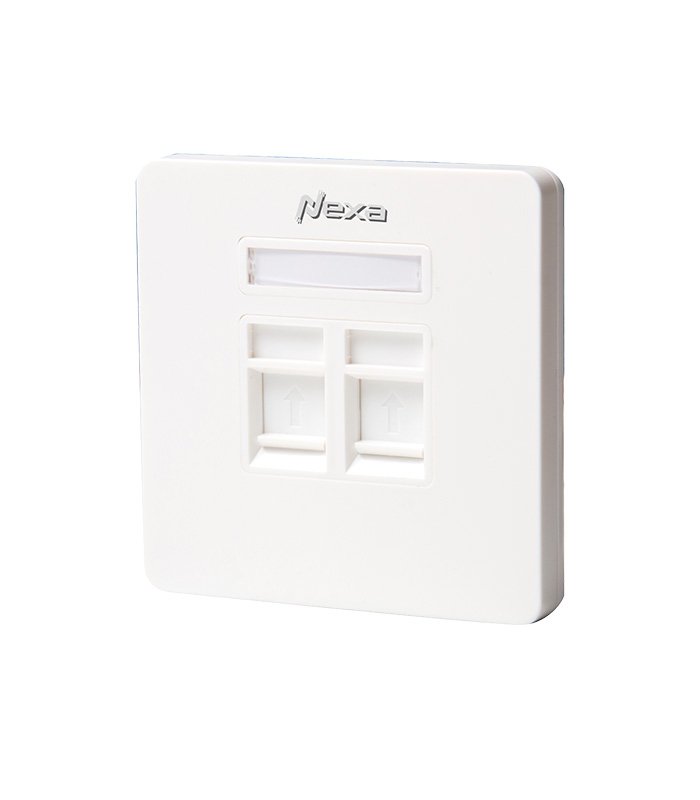

Nexa – Premium UK Type Face Plate | NX-FP-02-UK-WH
Product features
- The front cover adopts a push-button unlocking structure, which makes assembly and disassembly easier and more convenient.
- There are inlaid colored signs for computers/telephones, which can be quickly replaced and are convenient for identifying the information of data and telephone ports.
- Embedded blank transparent label strips allow quick marking of port information.
- It comes with a sliding dust-proof door, which is used to protect the module ports and prevent dust from entering.
- The combined double-layer structure design is applied to avoid the exposure of fixing screws, thus ensuring a good appearance.
- It has an internal honeycomb reinforced structure to ensure high-strength firmness.
Description
Specification
| Model | NX-FP-02-UK-WH | ||||
| Category | Port | ☑2 Port | |||
| Category | Wall Plate | ||||
| General Specifications | Material | ABS | |||
| Flammability Rating | UL94V-HB | ||||
| Color | White | ||||
| Surface Treatment | Mirror Polish | ||||
| Integrated Dust Cover
Type |
Sliding | ||||
| Outlet Orientation | Flat | ||||
| Operating Temperature | –40 °C to +60 °C | ||||
| Operating Humidity | < 90% (RH) | ||||
| Storage Temperature | –40 °C to +60 °C | ||||
| Storage Humidity | 10%–90% (RH) | ||||
| Product Dimensions | 86mm×86mm×15mm | ||||
| Accessory | Nut Quantity | 2 | |||
| Identification Quantity | 1 Port 1 each; 2 Port 2 each;3 Port none each; 4 Port none each; | ||||
| Standard | Compliance Standard | ANSI/TIA568.2-D ISO/IEC 11801 | |||
