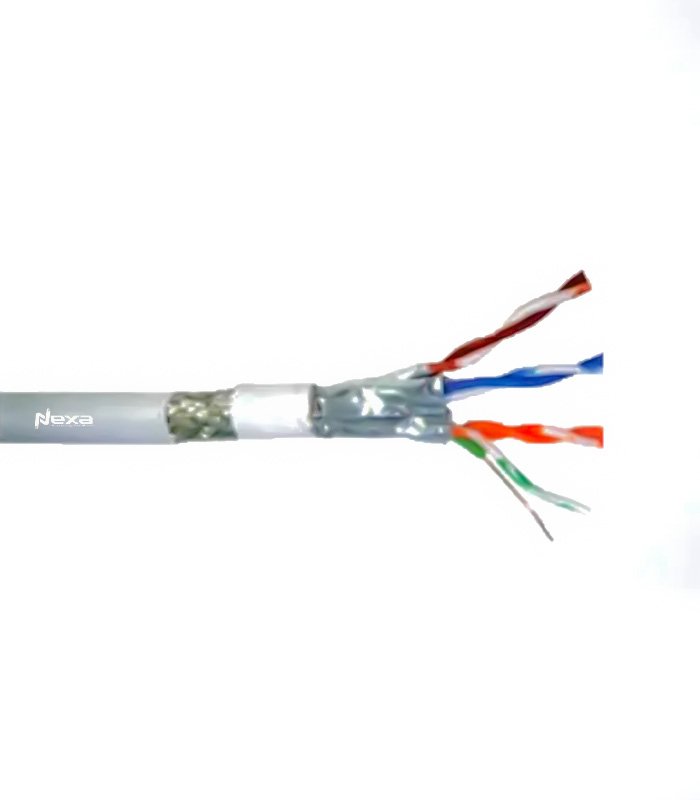

• Compliant to TIA-568.2-D Category 6A cable specifications
• 23 AWG SOLID-Bare Copper Conductor
• Characterized and tested up to 250MHz
• 4 Pair with LSZH Outer Jacket
• ROHS Compliant & UL Approval, DELTA, GHMT
• Print legend contains footage marking from 305M to 001M
Products Characteristics
• Conductor Diameter: 0.57mm ± 0.008mm
• Foam PE Insulation: 1.34mm ± 0.03 mm
• Al foil：Overlap rate≥125%
• Braiding：16*6*0.12mm ALMG
• Drain wire：1*0.4 tinned copper
• Outer Jacket Thickness: 0.5mm±0.5mm
• External Diameter: 7.9mm±0.5mm
• Linear Resistance: Max.<85 Ω/km
• Mutual Capacity (nom.): 5.6nF/100M
• Unbalance Capacity Max (p/p at 1 KHz): 1600 pF/km
• Characteristic Impedance (1 to 100 MHz): 100 ±15Q
• Velocity OF Propagation (f>1 MHz): 69% of c
Application
• IEEE 802.3: 10G BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854: 10G BASE-TX
• 155 Mb/s, 1.2 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token Ring
• Digital Video
• Broadband and Baseband Analog Video
Complied Standards
• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• ANSI/TIA-568-C.2:2009
• TIA/EIA-568B.2-2001
| Reference Electrical Characteristics | ||||||
| Frequency (MHz) | Return loss(dB) | Attenuation {dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | PSELFEXT (dB) |
| 1 | 20 | 2 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23 | 3.80 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25 | 5.30 | 59.3 | 57.3 | 47.8 | 44.8 |
| 20 | 25 | 8.50 | 54.8 | 52.2 | 41.8 | 38.8 |
| 62.5 | 21.5 | 15.40 | 47.4 | 45.4 | 42 | 29.1 |
| 100 | 20.1 | 19.80 | 44.3 | 42.3 | 27.8 | 25 |
| 150 | 18.9 | 24.70 | 41.7 | 39.7 | 24.3 | 21.3 |
| 200 | 18 | 29 | 39.8 | 37.8 | 21.8 | 19 |
| 250 | 17.3 | 32.8 | 38.3 | 36.3 | 20.4 | 17 |
