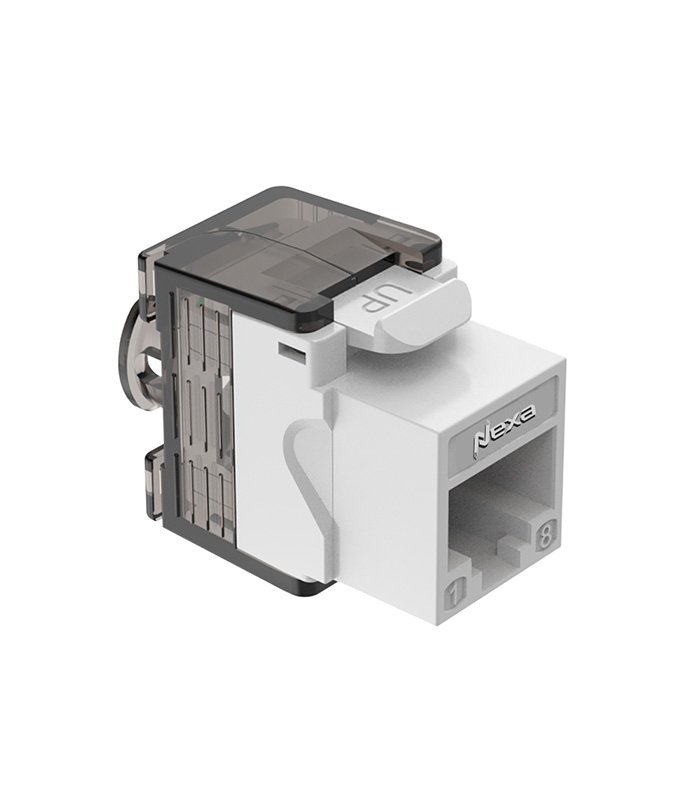

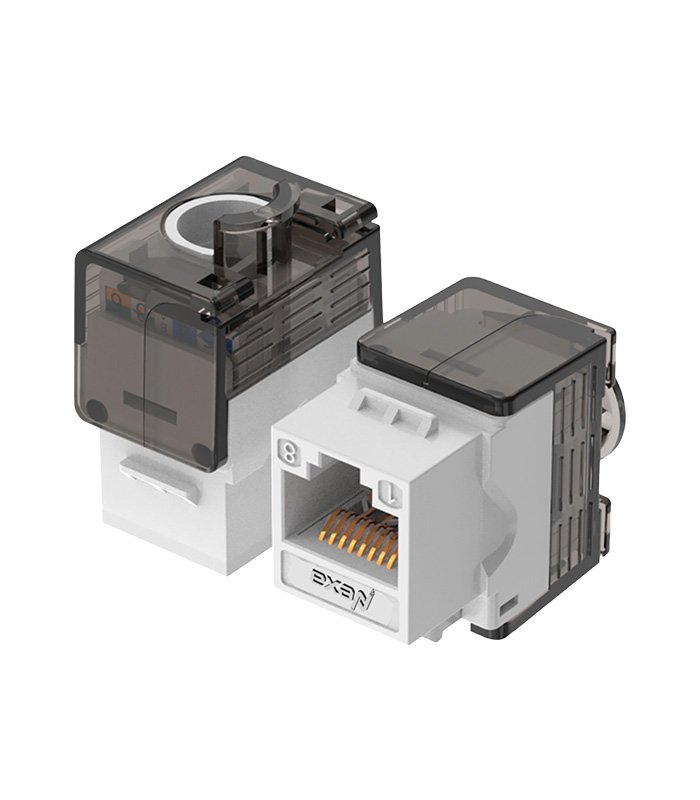

UTP keystone jack 180 degree Toolless | White | NX-KJ6A-U-WH | Nexa
Product features

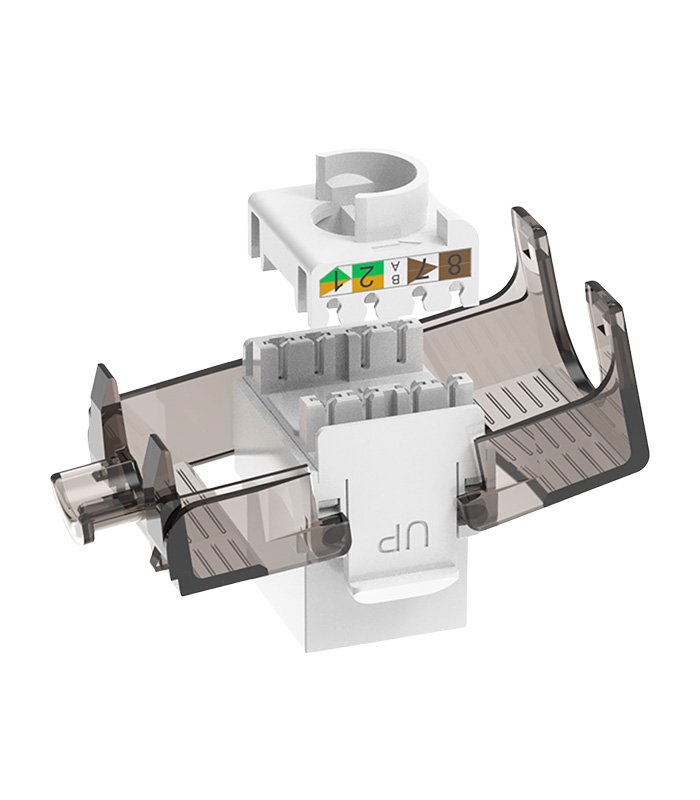

- The wire position markings on both sides of the wire clamp cover are compatible with the dual punch-down standards of T568A/B, and anti-detachment buckles are set, making wire distribution clearer and quicker.
- Wire slot labels on the back of the punch-down block are compatible with both TIA 568A and TIA 568B wiring standards, making wire separation clearer and faster.
- Optimal impedance matching is achieved through continuous impedance analysis of the gold-plated pins, terminals, and printed circuits.
Description
Specification
| Model | NX-KJ6A-U-WH | ||
| Category | Category | Network information module | |
| ☑ Cat6 ☑ Cat6A | |||
| Shielding Type | Unshielded | ||
| Material Specifications | Main material | PC UL94V-2 | |
| Pin Material | 50u gold plating | ||
| Terminal Material | Phosphor bronze nickel plating | ||
| PCB Material | FR-4 UL94V-0 | ||
| Electrical Specifications | Contact Resistance | ≤20 mΩ | |
| Current Rating | 1.5 Amps @20 °C | ||
| DC Resistance | 0.1 Ω | ||
| DC/AC Volt Endurance | 1000V/AC 750V/DC 1Min | ||
| Insulation Resistance | 500 MΩ 100V/DC/1Min | ||
| General Specifications | Product Color | White | |
| Wiring | TIA 568A/TIA 568B | ||
| Compatible with conductor gauge | 22 AWG~24 AWG | ||
| Plug Insertion Life | ≥750 cycles | ||
| IDC Life | ≥200 termination cycles | ||
| Punching | N/A | ||
| Retentiveness of insertion structure | 50N 60±5s | ||
