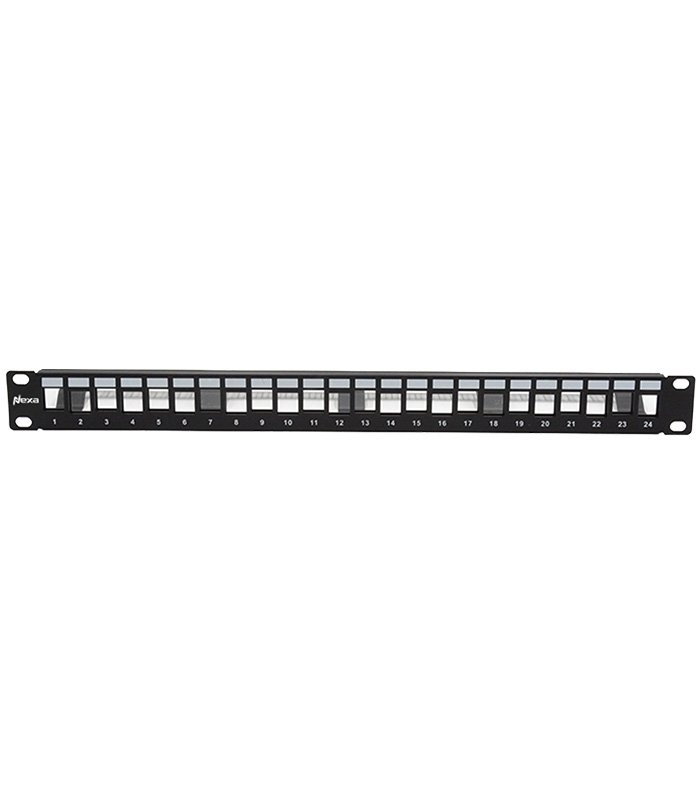

UTP blank patch panel with back bar | 24 port | NX-PP-24BM-1U | Nexa
Product features
- The metal frame is made of high-strength cold-rolled steel sheet SPCC with a thickness of 1.50mm.
- The patch panel is compatible with various modular plug or pass through modular plug.

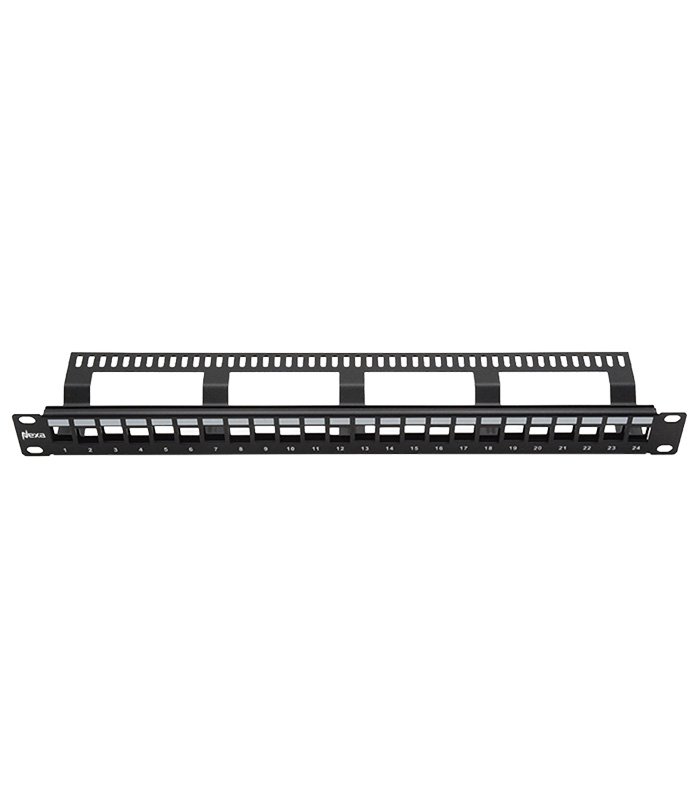

- Integrated bracket design, with a large cable management space in the rear cable management frame.

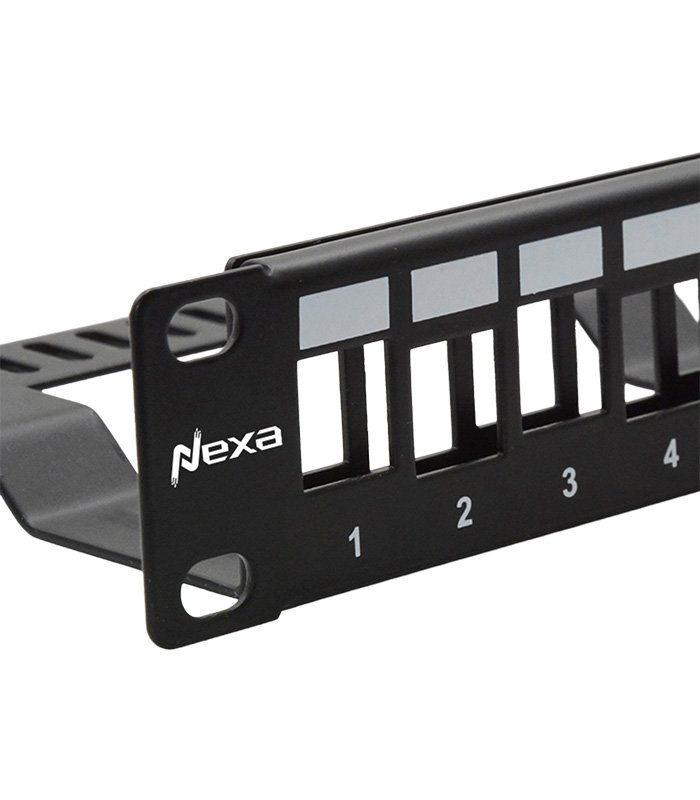

- The patch panel is equipped with 1-24 numerical markings below the ports.
Description
Specification
| Model | NX-PP-24BM-1U | ||
| Category | Category | Blanck patch panel | |
| Shielding Type | Unshielded | ||
| Material Specifications | Panel Material | Spray Plastic+ABS | |
| General Specifications | Product Color | Black | |
| Rack Unit | 1U | ||
| Number of ports | 24 | ||
| Flammability Rating | UL94V-HB | ||
| Operating Temperature | –20 °C to +75 °C | ||
| Operating Humidity | 10%–90% (RH) | ||
| Storage Temperature | –40 °C to +75 °C | ||
| Storage Humidity | 10%–90% (RH) | ||
| Product Dimensions | 482.60mm×100.00mm×44.50mm | ||
| Accessory | Nut quantity | 4 | |
| Screw quantity | 4 | ||
| Standard | Compliance Standard | ANSI/TIA568.2-D ISO/IEC 11801 |
