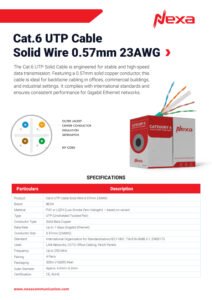

Nexa-Cat.6 UTP Cable Solid Wire 0.57mm 23AWG
NEXA 4-Pair U/UTP Cat6 cable has been designed to support high speed data transmission systems such as Gigabit Ethernet for mission critical LAN applications or future proofing Structured Cabling Systems. The cable is characterized to 250MHz and Powersum NEXT tested. We conform that the cable is used in a system to maximize cabling performance, providing extended frequency response and enhanced bandwidth.
Description

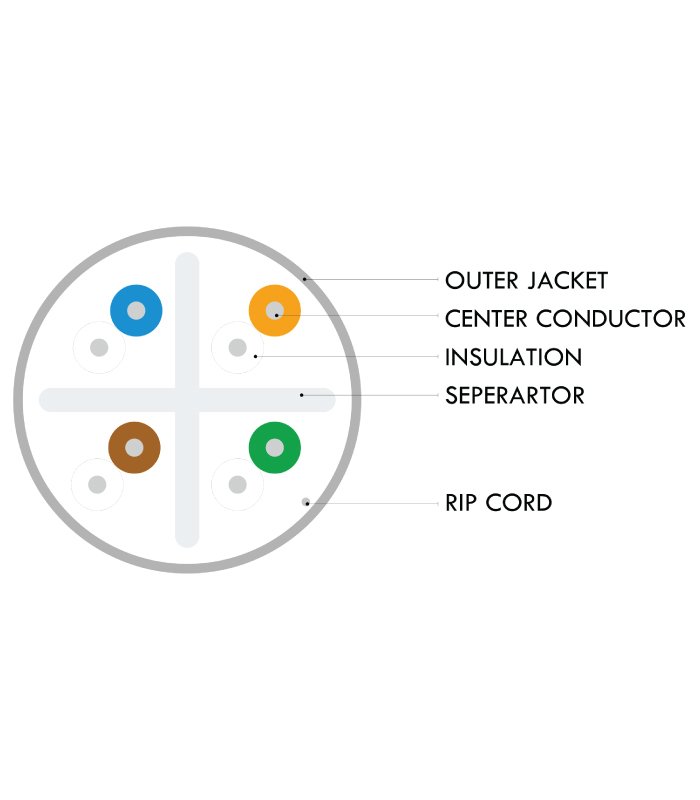

Products Characteristics
• Conductor Diameter: 0.57mm ± 0.008mm
• HDPE Solid Insulation: 1.02mm ± 0.02 mm
• HDPE Filler: 4.5* 0.45mm
• Outer Jacket Thickness: ≥ 0.50mm
• External Diameter: 6.2mm±0.5mm
• Linear Resistance: Max.<85Ω/km
• Mutual Capacity (nom.): 5.6nF/100M
• Unbalance Capacity Max (p/p at 1 KHz): 1500 pF/km
• Characteristic Impedance (1 to 100 MHz): 100 ±15Ω
• Velocity OF Propagation (f>1 MHz): 69% of c
Complied Standards
• ISO/IEC 11801:2011(Ed.2.2)
• IEC 61156-5:2009(Ed.2.0)
• EN 50173-1:2011
• EN 50173-2:2007 including amendment A1:2010
• ANSI/TIA-568-C.2:2009
• TIA/EIA-568B.2-2001
Application
• IEEE 802.3: 1000BASE-T (Gigabit Ethernet), 100BASE-TX, 10BASE-T
• ANSI/TIA/EIA-854: 1000BASE-TX
• 155 Mb/s, 1.2 Gb/s ATM
• ANSI X3.263: 100 Mb/s
• IEEE 802.3af DTE Power (POE)
• 4/16 Mb/s Token Ring
• Digital Video
• Broadband and Baseband Analog Video
